Cloth Filters

Ensure your irrigation water remains clean and free of impurities with our high-quality Cloth Filters. Designed for optimal performance, these filters efficiently remove dirt and other media from your irrigation system, promoting healthier plant growth and system longevity.

By maintaining clear and clean water, our Cloth Filters help prevent clogs and blockages in your irrigation system, ensuring uninterrupted water flow and consistent hydration for your crops. This leads to more uniform growth and can significantly enhance the overall yield and quality of your produce.

Our Cloth Filters are proudly designed and manufactured in North America, ensuring the highest standards of quality and durability. Investing in our Cloth Filters means investing in the long-term health and productivity of your irrigation infrastructure, providing peace of mind and superior results season after season. Trust in our North American-made products to deliver exceptional performance and reliability for all your irrigation needs.

Request a quote for pricing info

Contact Us

Cloth Filters for Irrigation Systems

How do Cloth Filters work?

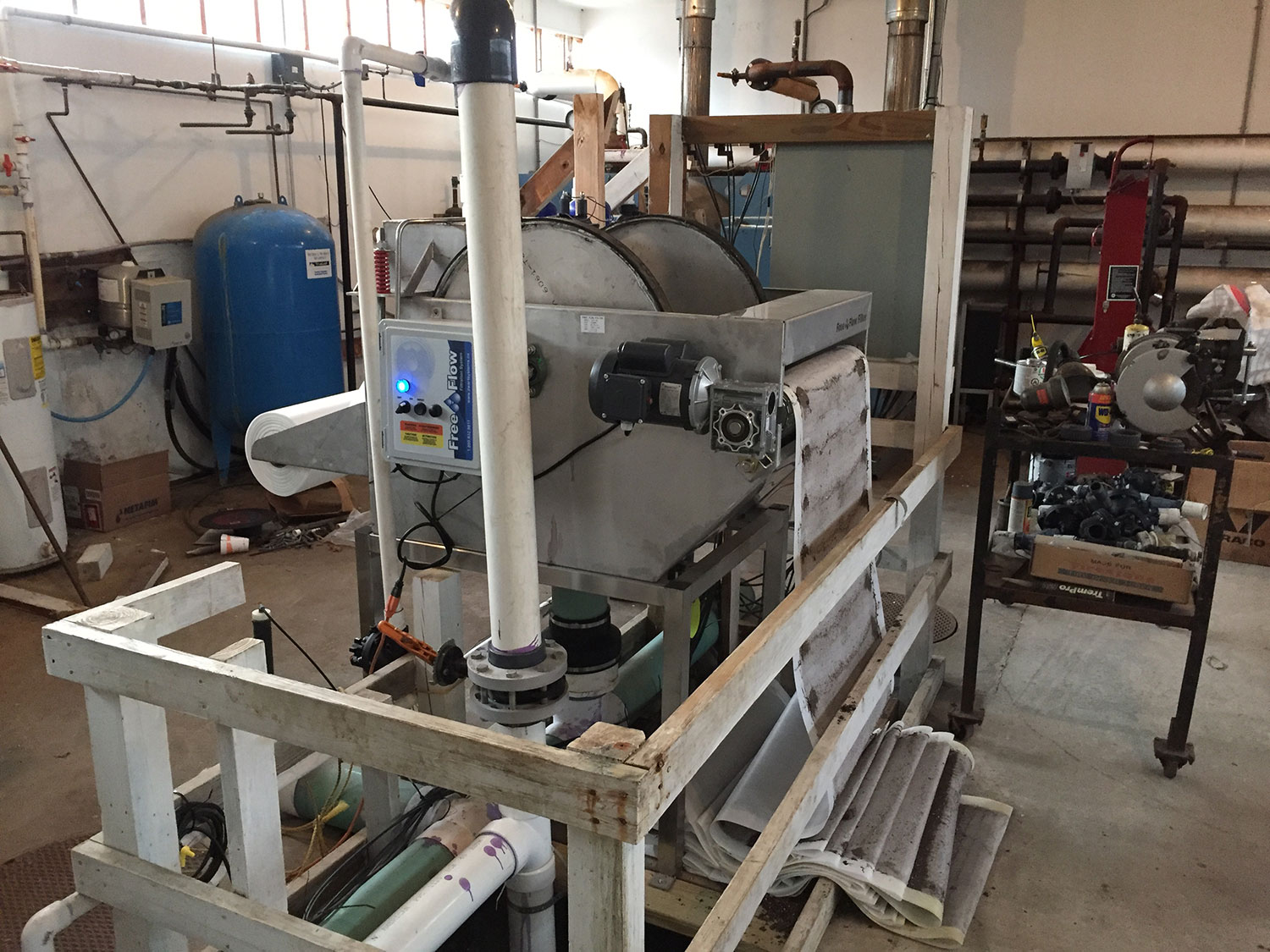

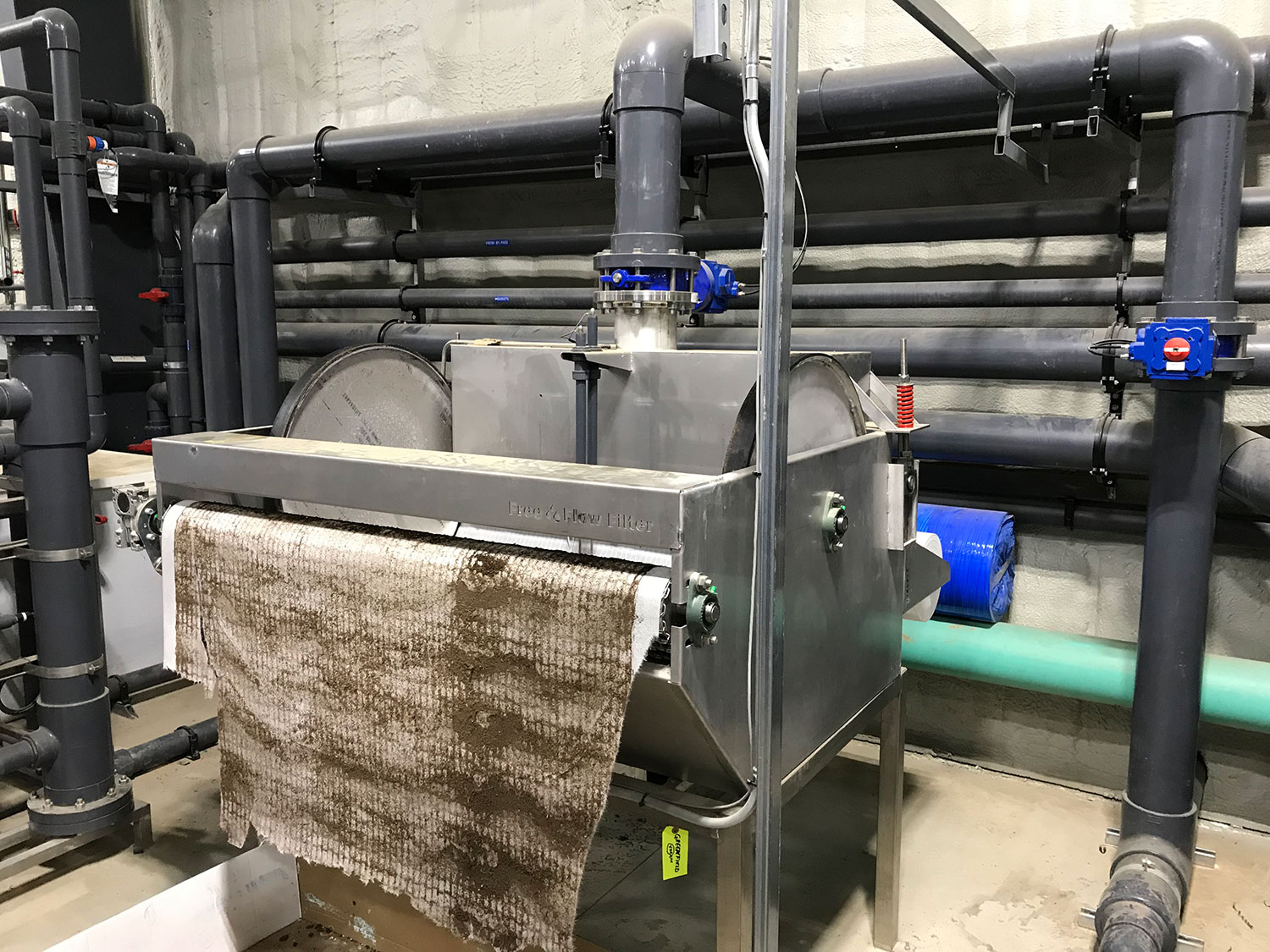

Our Cloth Filters operate by loading filter cloth into the rear of the filter unit. The cloth is then fed through rollers, exiting at the front. Water enters the top of the filter, where it is evenly dispersed over the filter cloth by baffle plates. This design ensures uniform water distribution across the cloth, maximizing filtration efficiency.

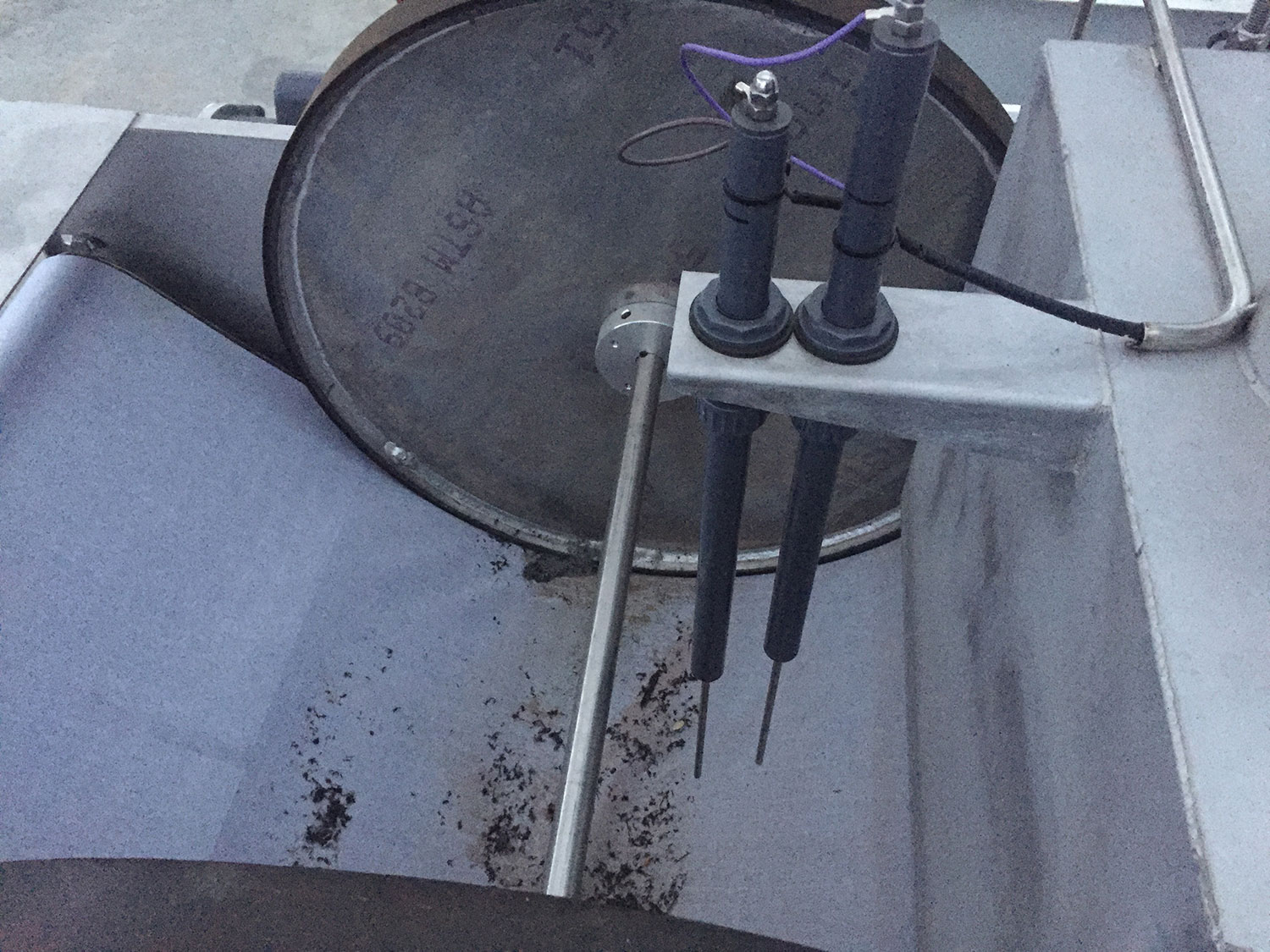

As water passes through the cloth, impurities larger than the cloth’s pores are trapped, allowing only clean water to flow through. Over time, as the cloth accumulates impurities, the water level inside the filter rises. A float switch is then triggered, activating the motor to advance the filter cloth and discharge the built-up debris from the front of the filter. This debris can be collected in an optional waste container for easy disposal. The filtered water is then returned to a storage tank, ready for reuse.

Features and Specifications

Material: Constructed from durable 304 stainless steel, our Cloth Filters are built to last.
Electrical Components: All electrical components are CSA/UL certified for safety and reliability.
Electrical Requirements: 120/1/60 VAC

Model Specifications

Model	Max GPM/hr (m³)	Inlet	Outlet	Max PSI	Cloth Width	Dimensions WxLxH (mm)
200	200 (46)	4″ FPT	6″	5	27″	1041x1550x991
400	400 (92)	6″ Flange	6″	5	51″	1651x1550x991
750	750 (172)	2 x 6″ Flange	8″	5	60″	1880x1880x1219

What different Cloth Filter options are available?

Cloth Filters are available in different weights, allowing you to customize the filtration level based on your specific needs. Available Cloth Filter weights include:

0.5oz
0.8oz
1.0oz
1.5oz
1.8oz
2.3oz
4.0oz

What are the benefits of Cloth Filters?

Efficiency: Ensures thorough removal of impurities, promoting healthy plant growth.
Cost-Effective: Reduces maintenance needs and extends the lifespan of your irrigation system.
Customizable: Various cloth weights are available to suit different filtration needs.

24/7 Technical Service & Support

Our team of experienced service staff is available 24/7 to support and troubleshoot any issue with your irrigation systems.

Contact Us

Related Products

Water Silos

AdeptAg offers water silos as a cost-effective solution to store water in your greenhouse. With stored water, you will have irrigation water you can control. Farms in North America are experiencing water shortages and/or rising water costs. By installing water silos farms can turn free rainwater into a valuable advantage. If you have on-site wells, a water silo allows wells to run continuously, filling a water buffer large enough to store water to irrigate an entire farm for a day.

Farms with gutter-connect greenhouses can collect free rainwater that would otherwise drain away. AdeptAg can help you find the right solution for your water storage needs.

See Product

Recirculation

Recirculation is not only about saving on fertilizer and water costs, it’s also about saving our future. AdeptAg can help you design the best greenhouse system for maximizing the value of your drain water and protecting your crops.

Did you know that in 2010 Ontario Canada’s government legislated that all greenhouse water must be reused? Recirculation has become a big industry topic.

Whether it is to recycle water on a simple closed-loop ebb and flood system or a more complex farm plan, the AdeptAg team has the expertise to help convert a farm that recycles no water to a farm that gets it all back to the last drop.

AdeptAg knows that recirculation is not only about saving on fertilizer and water costs, it’s also about saving our future.

See Product

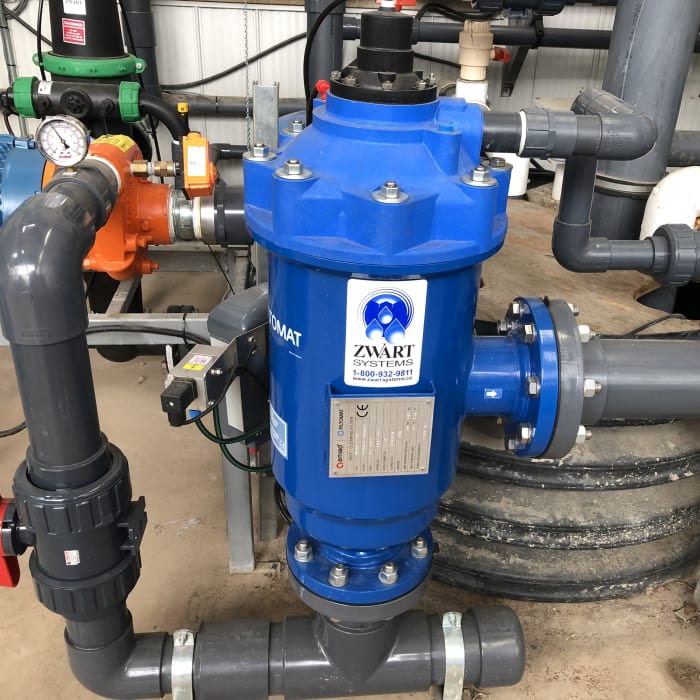

Filtration Systems
