T1500E Crate and Tray Washer
T1500E Crate and Tray Washer
T1500E Crate and Tray Washer

T1500E Crate and Tray Washer

The Limex T1500E Crate and Tray Washer can help eliminate the problem of transferring disease through contaminated crates and trays. A heavy-duty pump circulates heated water and washes containers from all angles through pressure nozzles located above, below, and on both sides. Detergents can also be mixed into this main wash to add even more cleaning power. An easily removed drawer houses the screen for larger particle trapping. This stainless steel unit with variable speed conveyor is capable of cleaning and disinfecting up to 600 trays per hour. It can also be used almost anywhere and is fitted with built-in forklift pockets for easy transporting.

Request a quote for pricing info

T1500E Crate and Tray Washer

Features:

  • 304 stainless steel construction
  • Easy-to-clean, stainless steel sliding drawer filter
  • High-pressure spray nozzle lines on top, bottom, and sides of tray conveyor
  • Water level controlled automatically by an electric valve
  • Separately controlled after-rinse section water bars. Non-recyclable disinfectant can be injected into the after-rinse water supply in the standard machine
  • Automatic tray in-feed and out-feed conveyors
  • In-line disinfectant spray chamber with recycling drip-pan conveyor
  • In-line tray-drying blower
  • Automatic clean tray stacking unit
  • Larger capacity machines to increase throughput or wash larger crates
  • Water heating with a heat exchanger or steam
  • High temperature wash up to 176°F

Maximum Product Size:

  • W X H: 520mm X 375mm
  • W X H: 20.47″ W x 14.76″ H maximum

Processing Speed:

  • Up to 600 plug trays per hour

Power Requirements:

  • 220VAC, 3 phase, 100 A

Dimensions:

  • L X W X H: 3300mm X 1000mm X 1700mm
  • 129″ L x 39.3″ W x 66.9″ H
Service Solutions, AdeptAg Technician working on a machine.

24/7 Technical Service & Support

Our team of experienced service staff is available 24/7 to support and troubleshoot any issue with your automation systems.

Contact Us

Related Products

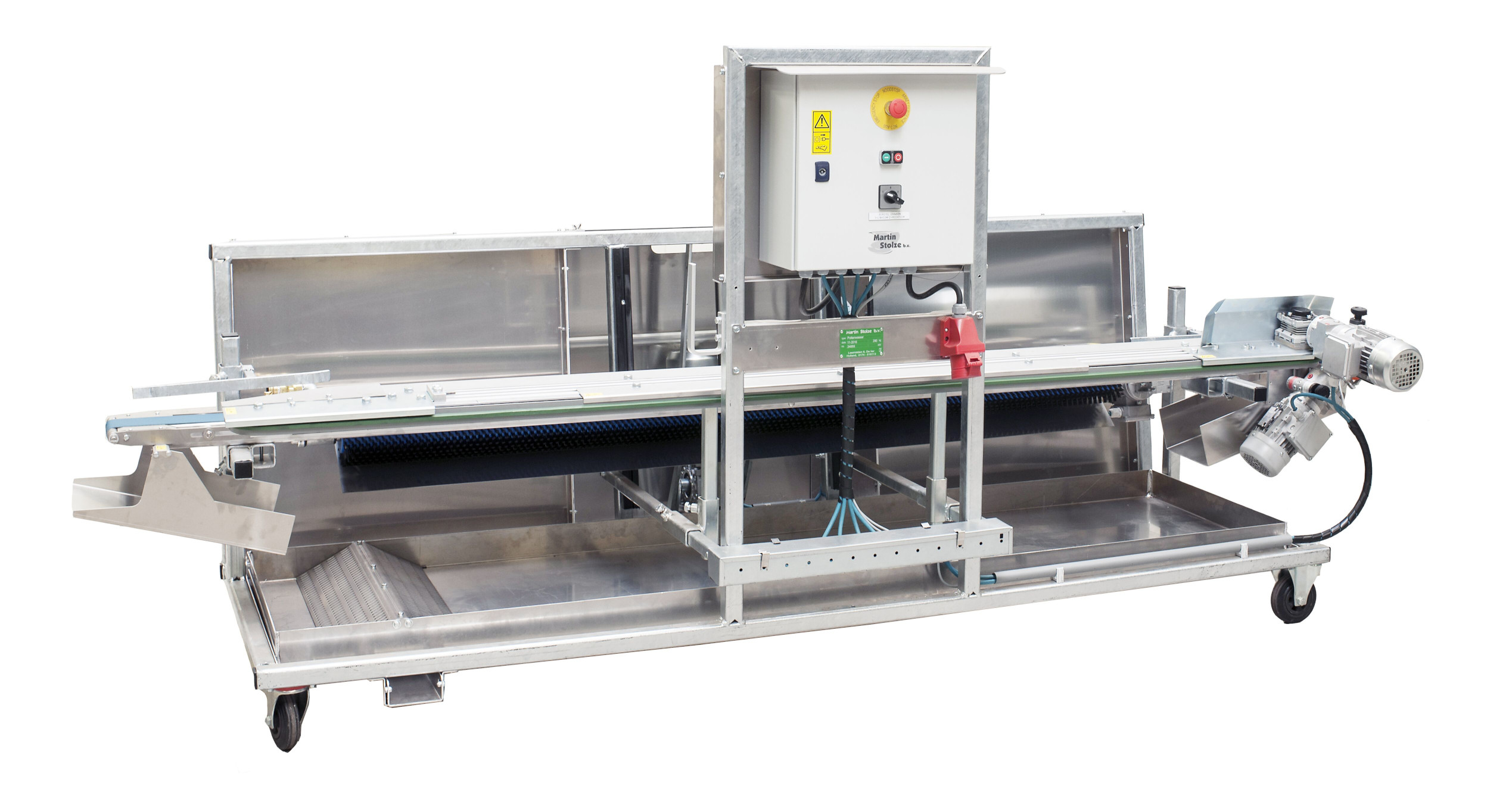

Pot Washer

Pot Washer

The Pot Washer is an essential machine designed to ensure that your containers are neat and clean before delivery to your customers. This innovative washer features a built-in conveyor belt with a stainless steel frame, providing durability and efficiency. As pots travel along the conveyor belt, they rotate, allowing the rotating brush to effortlessly clean all sides of the pot using just water.

The system’s efficiency is enhanced by the dirt and water being neatly drained into the water collection tank, maintaining a clean working environment. The speed of the conveyor belt, the belt drive (which ensures the pot’s rotation), and the up-and-down movement of the brushes can all be set according to your specific requirements, providing customizable cleaning options.

The Pot Washer is perfect for greenhouses, nurseries, and other horticultural operations that need to maintain high standards of cleanliness for their containers. By ensuring that each pot is thoroughly cleaned, this machine helps to improve the overall presentation and quality of your products, enhancing customer satisfaction.

Incorporating the Pot Washer into your operations will streamline your cleaning process, reduce labor costs, and improve efficiency. This machine is an invaluable tool for any grower looking to maintain pristine containers and ensure the highest standards of cleanliness for their customers.

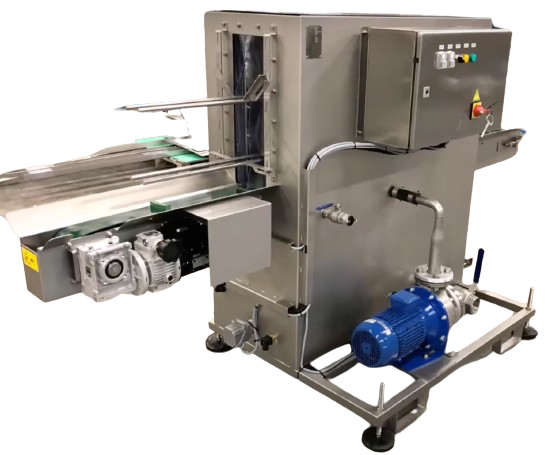

TW3 Tray Washer

TW3 Tray Washer

The TW3 tray washer is a state-of-the-art, compact stand-alone tray washing machine specifically designed for the vertical transport of trays. With its compact design, it fits seamlessly into various operational spaces while delivering exceptional performance. Constructed primarily from high-quality stainless steel, the TW3 washer offers durability and longevity.

The washing process includes a short main wash using recycled water, followed by an efficient after-rinse, ensuring trays are impeccably clean. It features a 120-liter water tank, a powerful 3 kW pump, and adjustable water consumption ranging from 50 to 300 liters per hour, making it both effective and economical.

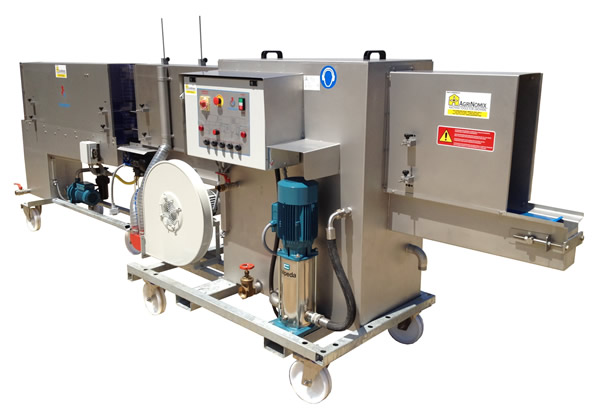

LAV10 Tray Washing

LAV10 Tray Washing/Disinfecting System

The Urbinati LAV10 Tray Washing/Disinfecting System is a cost-effective machine for cleaning and disinfecting plant propagation and shuttle trays (thermoformed or injection-molded). The LAV10’s relatively lightweight and small footprint allows it to be moved into place when and where you need it, and safely stored when not in use. Tray washers provides a solution to reduce plastic waste in these times of heightened environmental awareness and high material prices.
